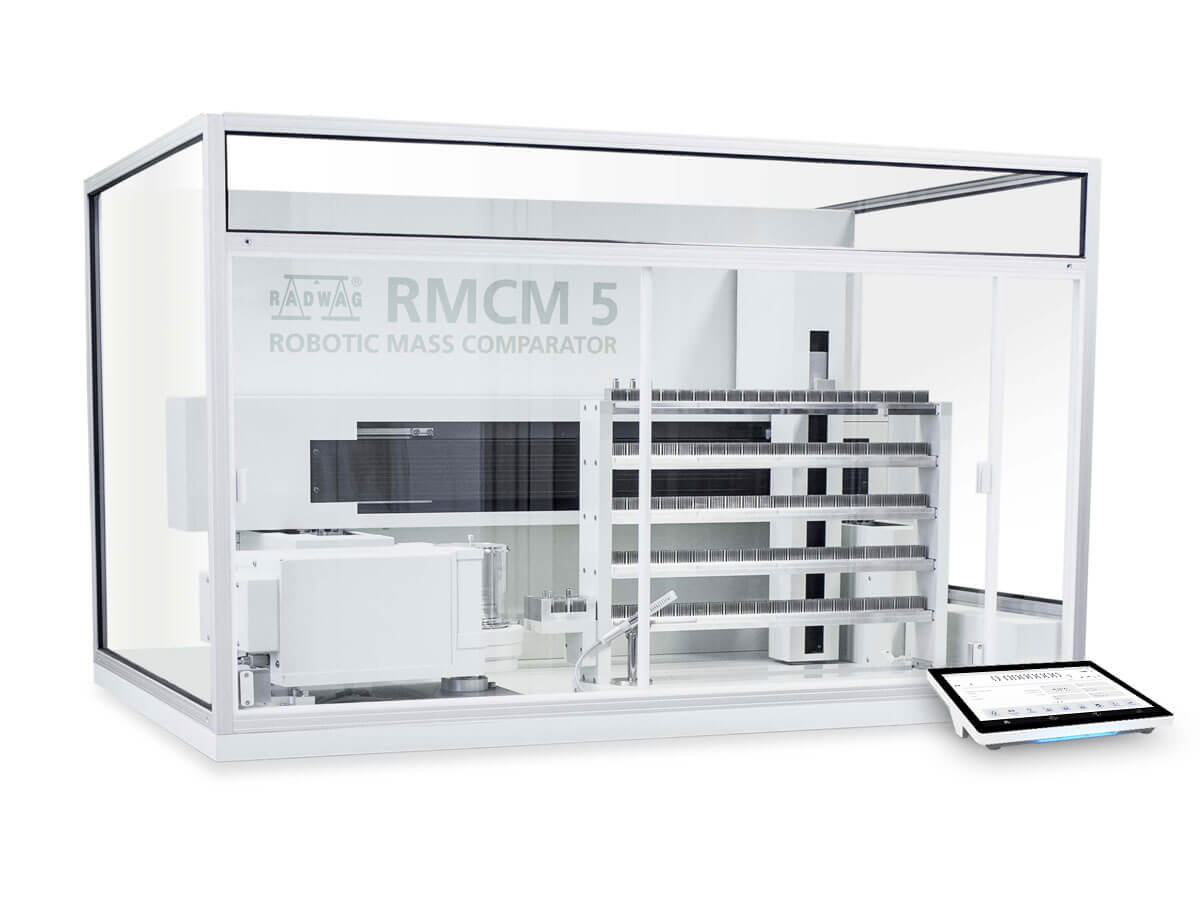

Radwag RMCM Robotic Mass Comparator

OVERVIEW

Readability [d]: 0.0001mg – 10
Maximum capacity [Max]: 510mg – 51kg

RMCM-5 robotic mass comparator guarantees the utmost repeatability within 1 mg – 5 g range with the readability of 0.1 µg.

A Mass Comparator and a Robotic Transport System in One Compact Device

This combination results with:

reduction of air drafts and vibrations from a robotic system in the course of comparison,
minimize risk of human error,
easier maintaining of stable environmental conditions inside the weighing chamber (thanks to a compact device dimensions).

Function of Automatic Mass Standard Dissemination
RMCM-5 mass comparator facilitates a complete dissemination process. This is possible thanks to use of the intermediate mass standard magazine, which significantly shortens comparison duration and reduces wear and tear of the transport robot.

Real-Time Measurement of Ambient Conditions

The RMCM-5 mass comparator comes standard with a top-class thermo-hygro-barometer enabling real-time control of ambient conditions in three locations. The characteristic feature of the RMCM-5 is high readability of pressure, 0.001 hPa, humidity, 0.01 %, and temperature, 0.001 °C. Reliability of ambient conditions measurement carried out using the thermo-hygro-barometer is confirmed by a calibration certificate.

Universal magazine insert shape

Mass standard magazine features 120 positions. The RMCM-5 enables comparison of weights of all shapes compliant with OIML recommendations, using just one universal insert. Remote, real-time preview of comparison process in real time is possible thanks to a video camera.

Optional Equipment

Additional equipment includes a video camera enabling remote preview of comparison process in real time (Internet access required), and RMCS software. The RMCS allows unrestricted monitoring of the comparison process.

Kategori: Mass Comparator

Brand: Radwag Indonesia

DATASHEET

E1	1 mg — 5 g
E2	1 mg — 5 g
F1	1 mg — 5 g
F2	1 mg — 5 g
Maximum capacity [Max]	6.1 g
Readability [d]	0.1 µg
Standard repeatability [5% Max]	0.25 µg
Standard repeatability [Max]	0.4 µg
Permissible repeatability	0.7 µg
Electric compensation range	0 — 6.1 g
Stabilization time	30 s
Adjustment	internal (automatic)
Display	10″ touchscreen
Magazine positions	120
Weighing pan dimensions	24×50 mm
Communication interface	USB-A ×2, USB-C, HDMI, Ethernet, Wi-Fi^®, Hotspot
Operating temperature	+15 — +30°C
Operating temperature change rate	±0.5°C/12h (±0.3°C/4h)
Relative humidity	40% — 60%
Relative humidity change rate	±5%/12h (3%/4h)
