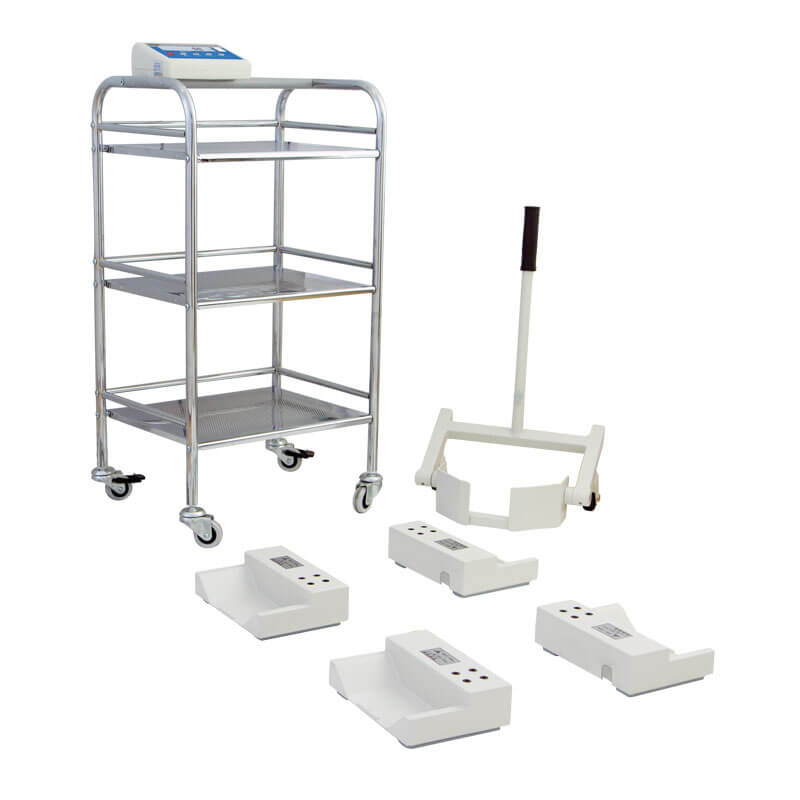

Radwag C315.4B.500.C-1 Bed Scale
OVERVIEW
Bed scales series is a precise weighing instruments verified in class III, designed for weighing a patient who lies on a bed.
Four weighing modules connected through cables enable placing the scale under a bed of optional size. Lifting the bed is very simple with a jack specially designed for this purpose (it is designed for wheels size between 100 and 200 mm).
The scales comes standard with an indicator PUE C315 series comprising a backlit LCD display and 5-button keyboard for simple operation of basic scale functions.
Scale is transported on a trolley, which is simultaneously a stand for the scale indicator.
DATASHEET
| Maximum capacity [Max] | 500 kg |
| Readability [d] | 200 g |
| Tare range | -500 kg |
| OIML Class | III |
| Display | LCD (backlit) |
| Communication interface | RS232 |
| Power supply | 100-240 V AC 50/60 Hz and battery |
| Power consumption max. | 5 W |
| Operation time on batteries | up to 8 h |
| Operating temperature | 0 — +40°C |
| Relative humidity | 10% — 85% RH no condensation |
FUNCTIONS
INTERNAL BATTERY
Internal and rechargeable battery of SLA 6 V type (sealed lead acid) enables device operation without connecting the device to the mains (9h operation). The weighing instrument controls battery status and displays a respective pictogram on the screen.
PEAK HOLD
Function registering the greatest temporary indication occurring in course of the weighing process. It is most often used in medical scales in order to hold the measurement indication.
GLP PROCEDURES
Diagnostic function allowing to objectively document performed measurements. GLP procedures may be either presented in a short report form or extended one.
ALIBI MEMORY
“ALIBI” memory enables saving and storing up to 100000 measurements. Measurements are saved automatically upon each pressing of the key. There is no need for any additional operations or changing settings.
The following data related with the measurements is saved: measurement date; measurement time; result (mass); tare value; operator carrying out the measurement (logged in); product name.
The software saves the measurement in a so called loop, i.e. when the measurement no. 100001 is saved, the measurement 1 gets automatically deleted from the memory.
Measurements saved to balance memory cannot be deleted.
You can preview and print out the data saved to the ALIBI database.
BMI
The BMI is defined as the body mass divided by the square of the body height, and is expressed in units of kg/m2, resulting from mass in kilograms and height in metres.
